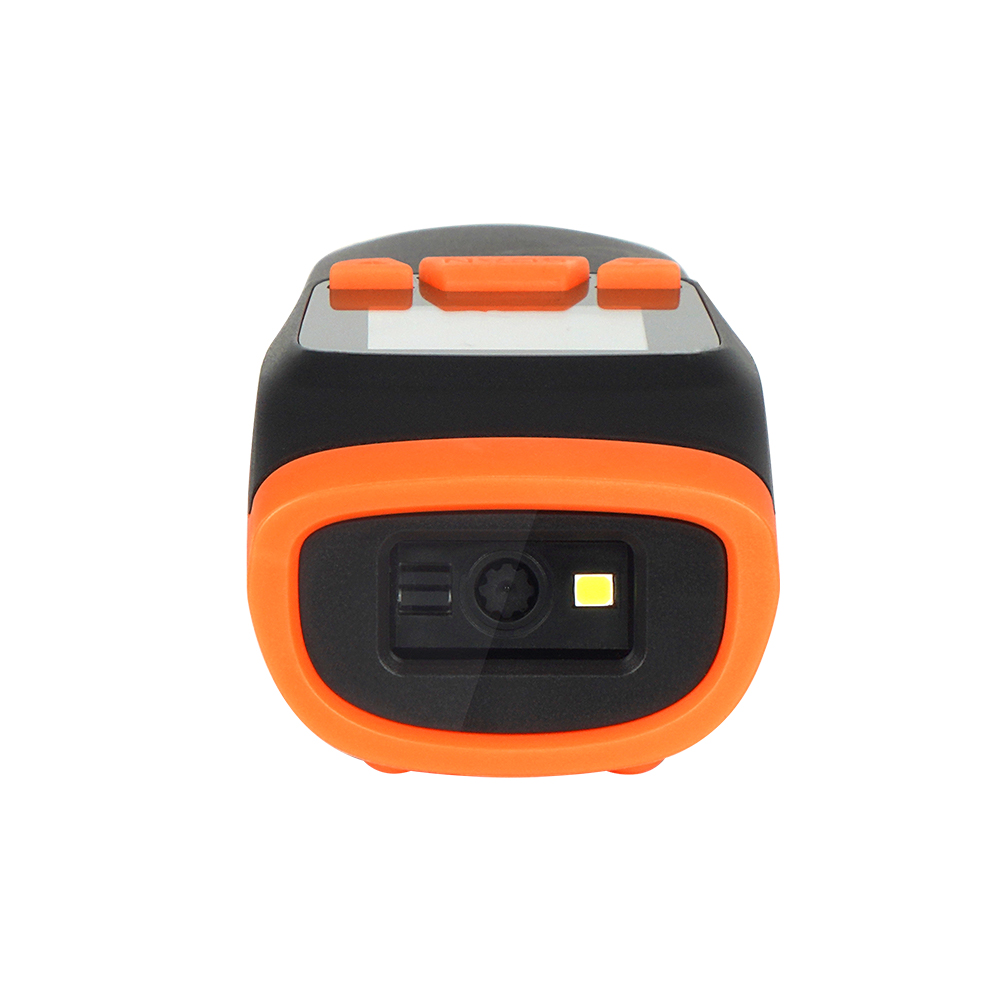

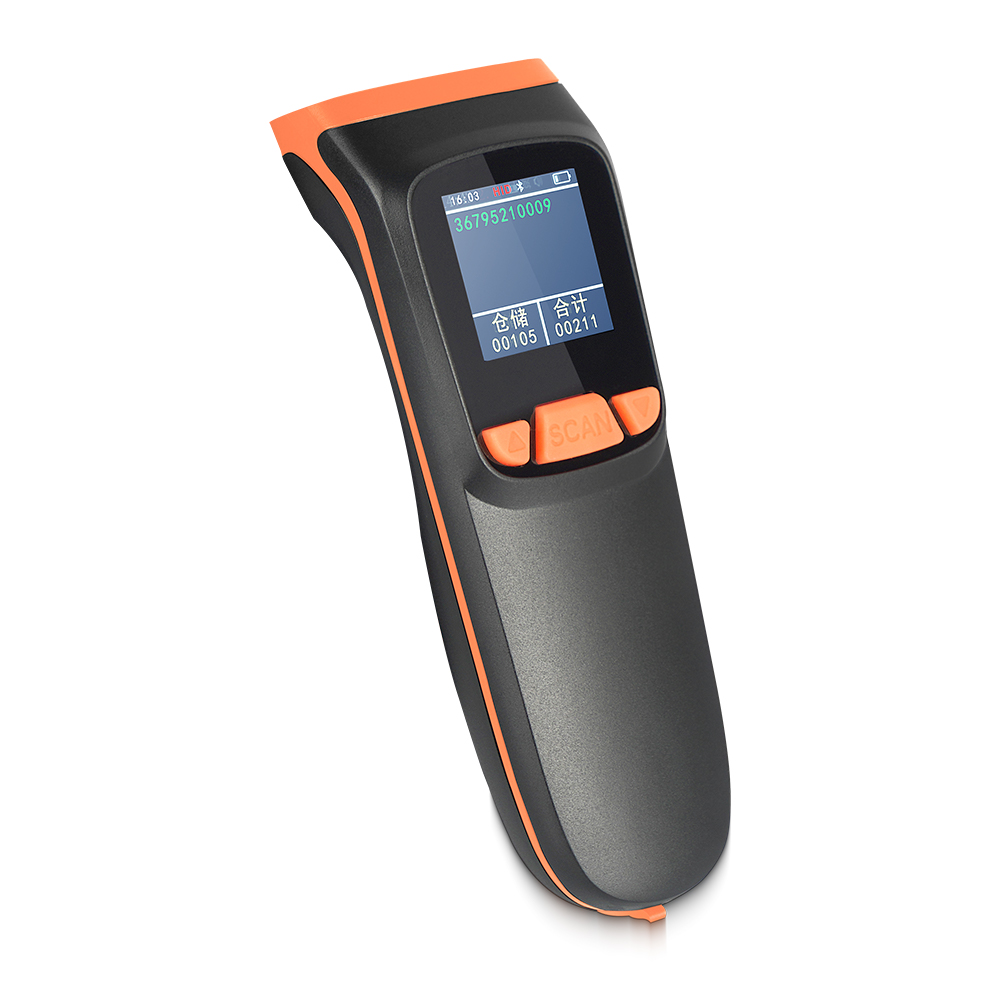

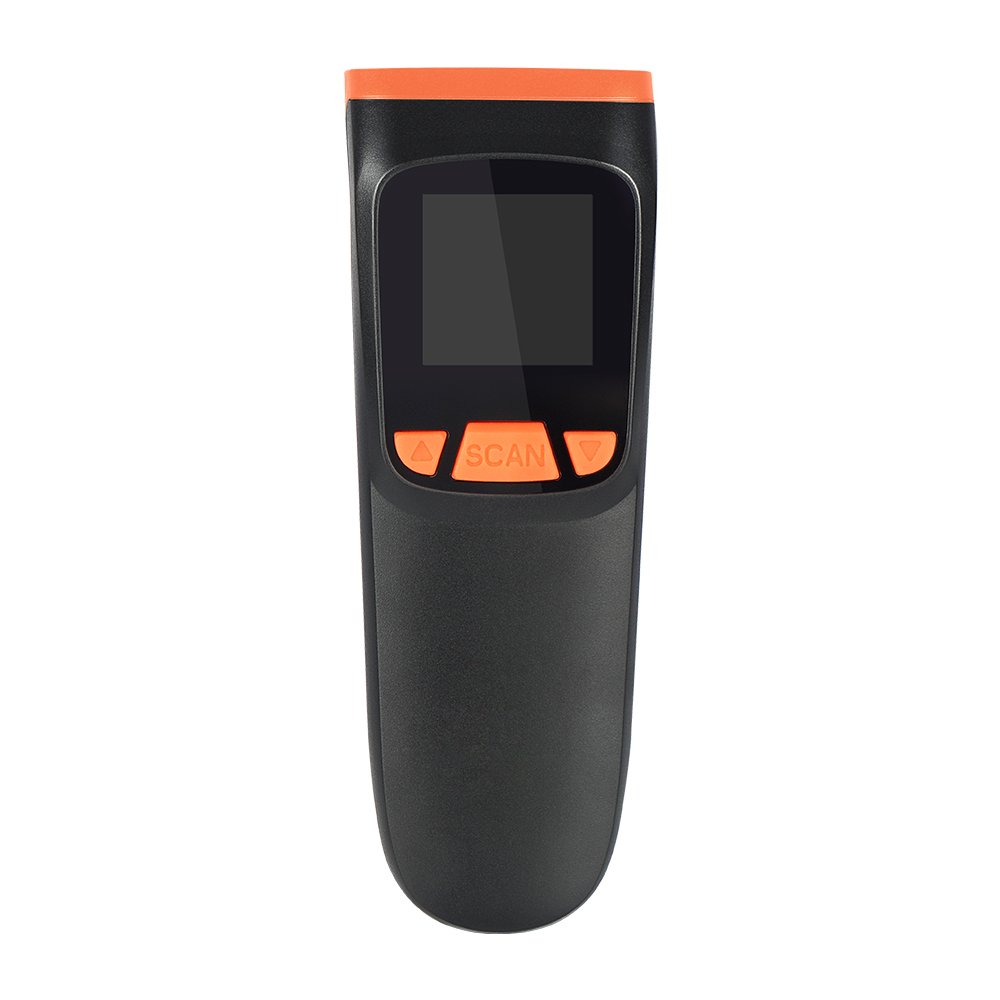

AK-M82 is a new design 2D portable barcode scanner with LED screen display, Through Bluetooth and 2.4G fast connection, it is compatible with iOS, Windows and Android, which is very suitable for retail stores, supermarkets, warehouses, libraries, pharmacies, logistics and other places.
1. High sensitive, fast and accurate reading of various 1D and 2D barcodes
2. High-definition display, real-time viewing of barcode data, convenient and quick
3. Dual-mode wireless transmission mode: 2.4G and Bluetooth mode
4. 512,000 characters can be stored in offline/inventory storage mode
5. Can be paired directly with Bluetooth-enabled mobile phones, tablets, and laptops
| Performance Parameters | |
| Light Sources | 617nm LED Aimer,White LED |
| Supported Symbologies | 1D: EAN-13, EAN-8, UPC-A, UPC-E, UPC-A, Code 39, Code 93, Code 32, Code 128, Codabar, Interleaved 2 of 5, ISBN, ISSN, IATA 2 of 5, Industrial 2 of 5, MSI Plessey, Matrix 2 of 5. |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec. | |
| Scan Type | Image CMOS |
| Resolution | 640*480 |
| Scan Mode | Manual/Continuous/Automatic Induction Scanning |
| Scan angle | Yaw±45°, Rotation 360°, Pitch±45° |
| Contrast | ≥20% |
| Field Angle | 48º（H）x36º（V） |
| Precision | ≥5mil |
| Depth of scan field | 40-250mm(EAN13 13mil); 40-100mm(Code39 4mil); 20-170mm(QR code 15mil) |
| Error Rate | Less than 1/5million |
| Interface | Receiver: USB-HID |
| BT: HID, BLE, SPP | |
| Wireless Communication | Pairing Mobile Wireless Devices: 2.4G & Dual mode BT |
| Wireless transmission distance | 100meters (open distance) |
| Storage Mode | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. |
| Pairing Mode | One to One: One scanner paired with a Wireless mobile device |
| Electrical Parameters | |
| Voltage | DC5V±5% |
| Standby Current | 0mA (Standby is to cut off battery power) |
| Lithium battery | 1000mA |
| Battery Working Time | Continuous work for 4 hours; Intermittent work for more than 8 hours. |
| Charging Time | 3-3.5h |
| Charging Model | Type-C charging cable, plug straight charge |
| Physical Parameters | |
| Material | ABS+PC |
| Cable | 1M |
| Environmental Parameters | |
| Operating Temperature | -20℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete |
Packaging Details：Package Contents
1* barcode scanner
1* stand(optional)
1* User Manual (English version)
1* Cable (1.5m)
1* Warranty card
Syble barcode scanner standard package
Technical support:
1. Provide the necessary professional traning online or offline
2. Comprehensive technical support provide pre-sales&after-sales
3. Presentation&promotion of the new inonvative products
Spare parts policy:
1. Provide certain spare parts in every order shipment as required
2. Provide free maintenance or replacement spare parts within the given warranty period
3. Provide free maintenance technology and spare parts chargeable under out of warranty
Products service:
1. Provide the pre-sales,in-sales and after-sales services
2. Provide all technical documents as required
3. 2 years warranty for all of our products
Value-added services:
1. Provide long time maintenance services
2. Provide extended warranty as required
3. Provide the regular routine maintenance services
Introducing the AK-C22 1D/2D Barcode Scanner, a premium addition to the ATEK series by Syble, renowned for its exceptional stability and quality assurance. This high-end scanner is compatible with 99% of mobile phones, making it an ideal choice for various applications.
Elevate your data capture capabilities with the AK-C22 1D/2D Barcode Scanner. Its combination of advanced features and user-friendly design makes it a valuable tool for any business looking to enhance efficiency and productivity.
FAQ
1:Do your company is a trading agent or manufacturer?
We are professional manufacturer of all kinds of Barcode Scanner with own factory
2.What about the warranty of this Corded Barcode Scanner?
2 years warranty on the Barcode Reader, 6 month on the cable
3.What is the minimum order of this Barcode Reader?
The MOQ is 1pc with our logo
4.Do you have stock products to sell?
Yes,and we also work on OEM/ODM orders,like printing with your brand&label design
5.What's your products range?
--Laser barcode scanner
--Wireless barcode scanner
--Omni-directional barcode scanner
--CCD barcode scanner
--2D barcode scanner
