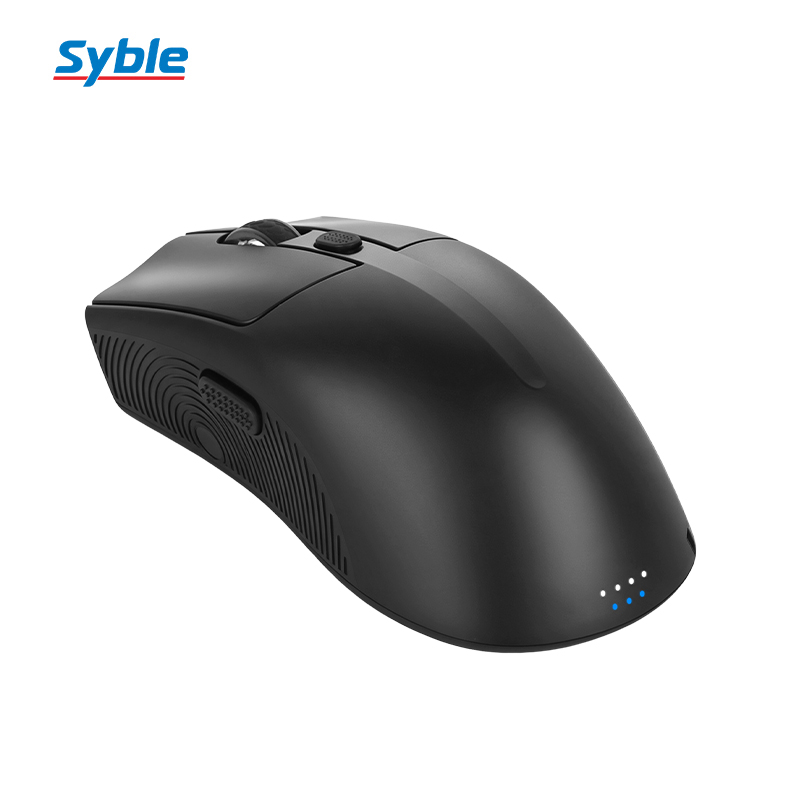

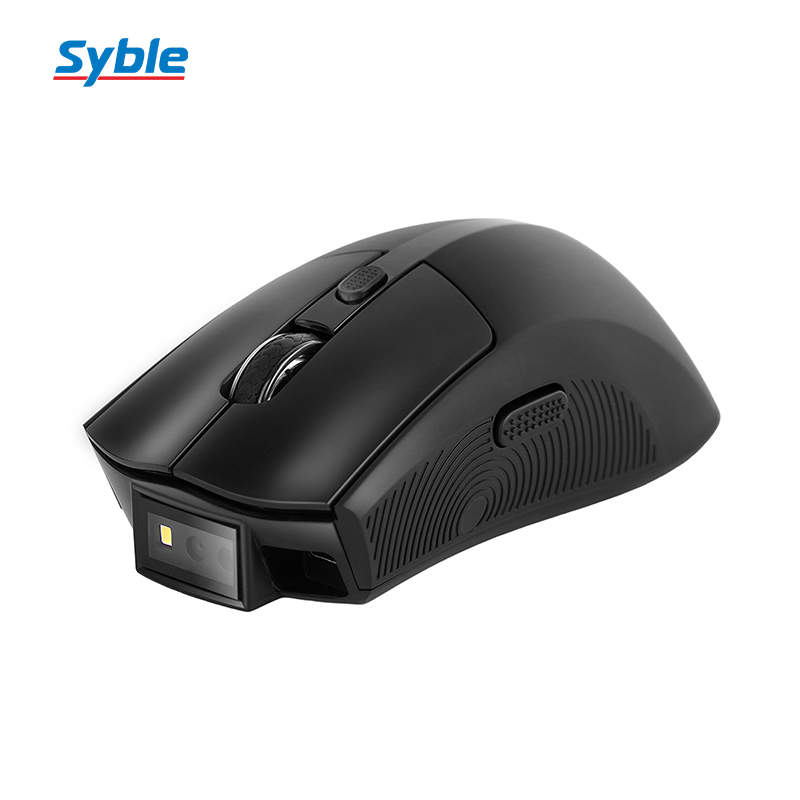

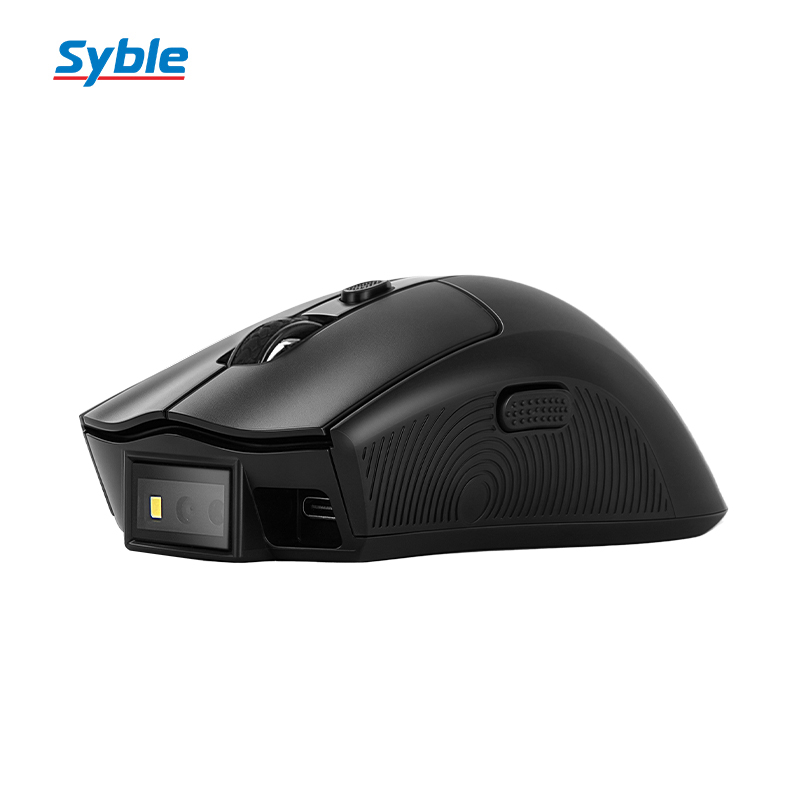

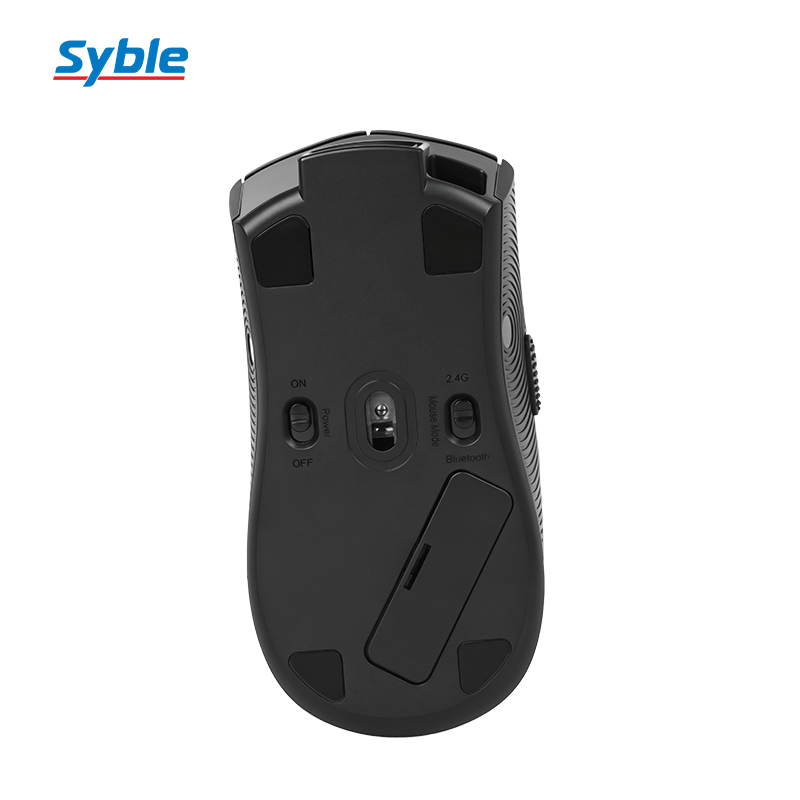

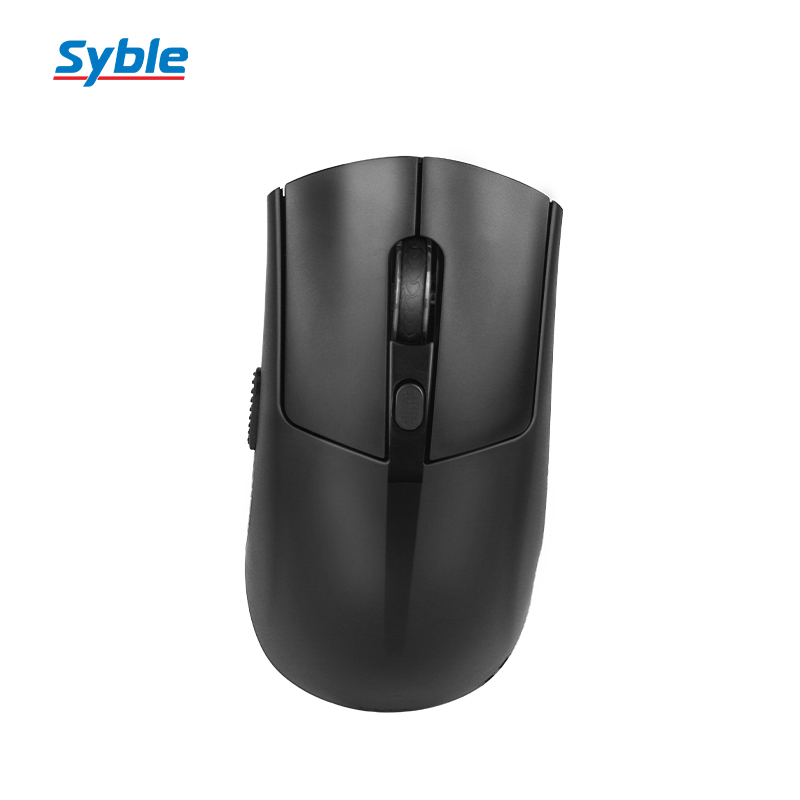

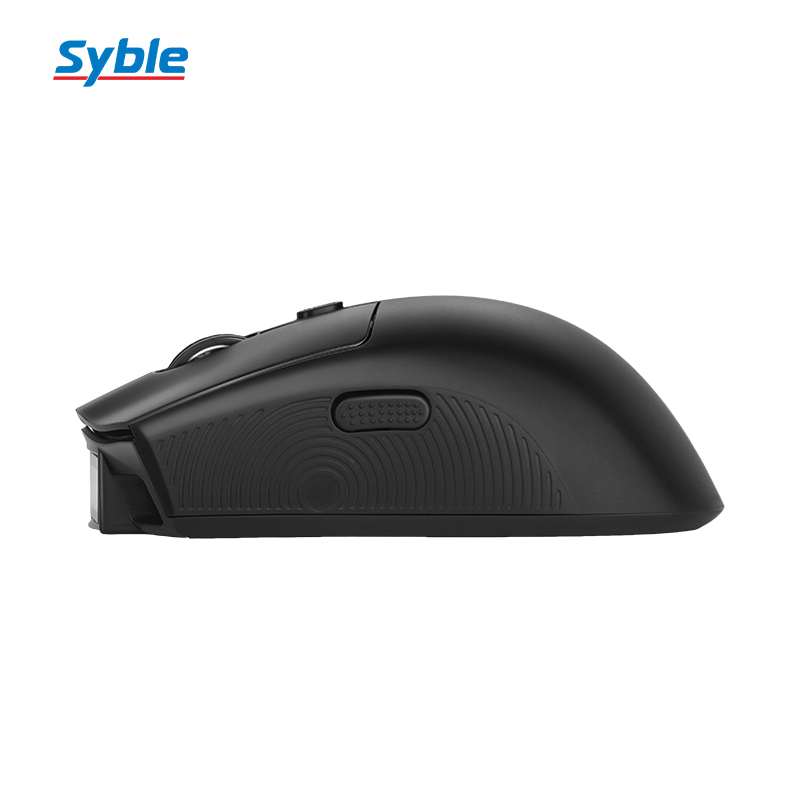

This is the brand new M10, a high-end 2-in-1 wireless mouse & barcode scanner from Syble, delivering excellent stability and reliable quality assurance.

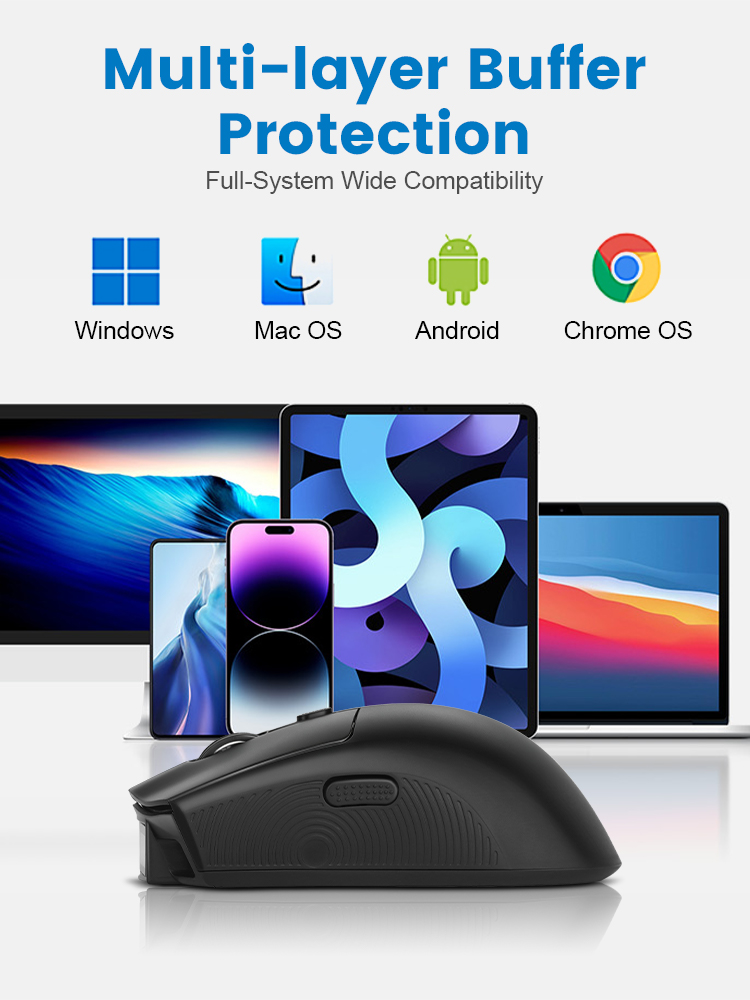

Compatible with Windows, Android, Linux and iOS systems — works with 99% of mainstream computers, POS terminals and mobile devices.
Press and hold for 5s to enter Bluetooth pairing mode. Connect the scanner when you hear a beep, the pairing is successful.
Plug and play, no driver installation needed — the 2.4G receiver supports dual communication for both mouse and scanner simultaneously.
Experience the power of a long-lasting 1500mAh large capacity battery, designed for all-day endurance.
Product Feature of M10：

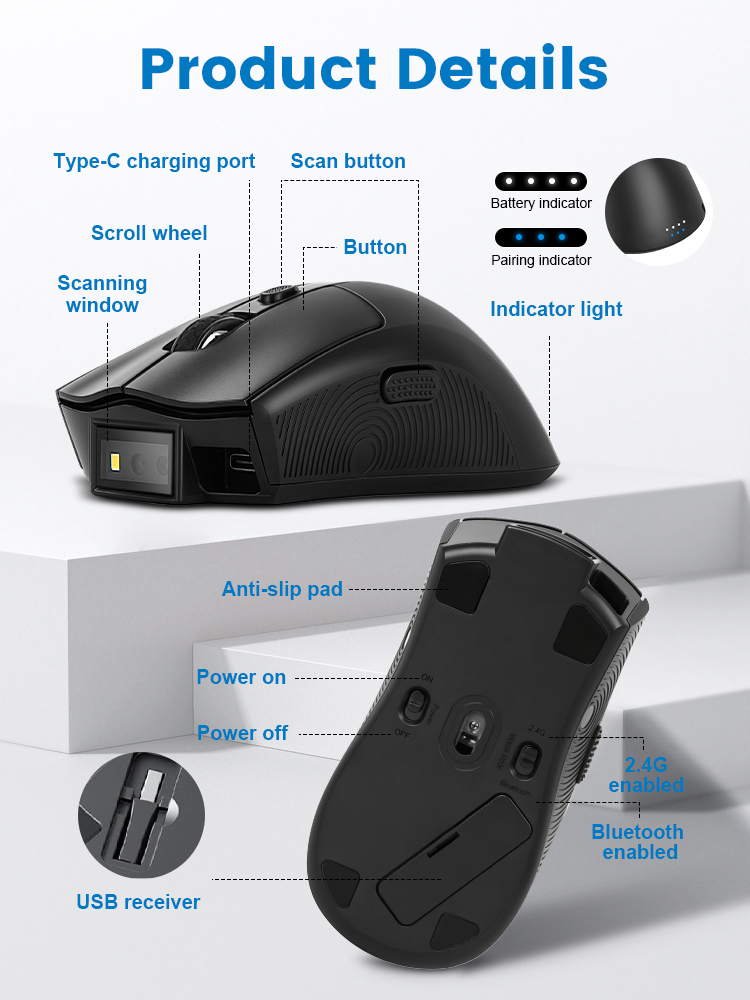

1. 2-in-1 design — works as both a wireless mouse and a 1D/2D barcode scanner, replacing PDA, scanning gun and mobile phone scanning
2.Dual Bluetooth modules — one for mouse connection, one for scanner data transmission, supporting BLE, SPP and HID modes
3.16MB built-in Flash memory — stores up to massive data in offline/inventory storage mode
4.Outstanding scanning performance — 3mil precision, capable of handling all kinds of 1D/2D barcode scanning scenarios

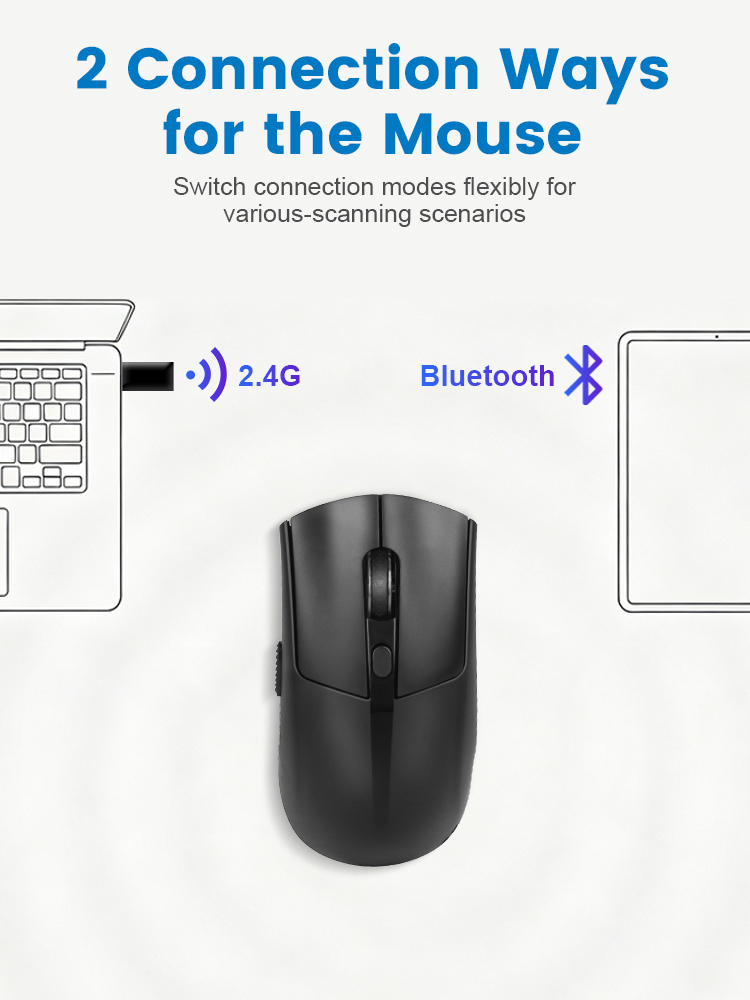

5.Bluetooth & 2.4G dual wireless connection — easy, fast and reliable for diverse working environments

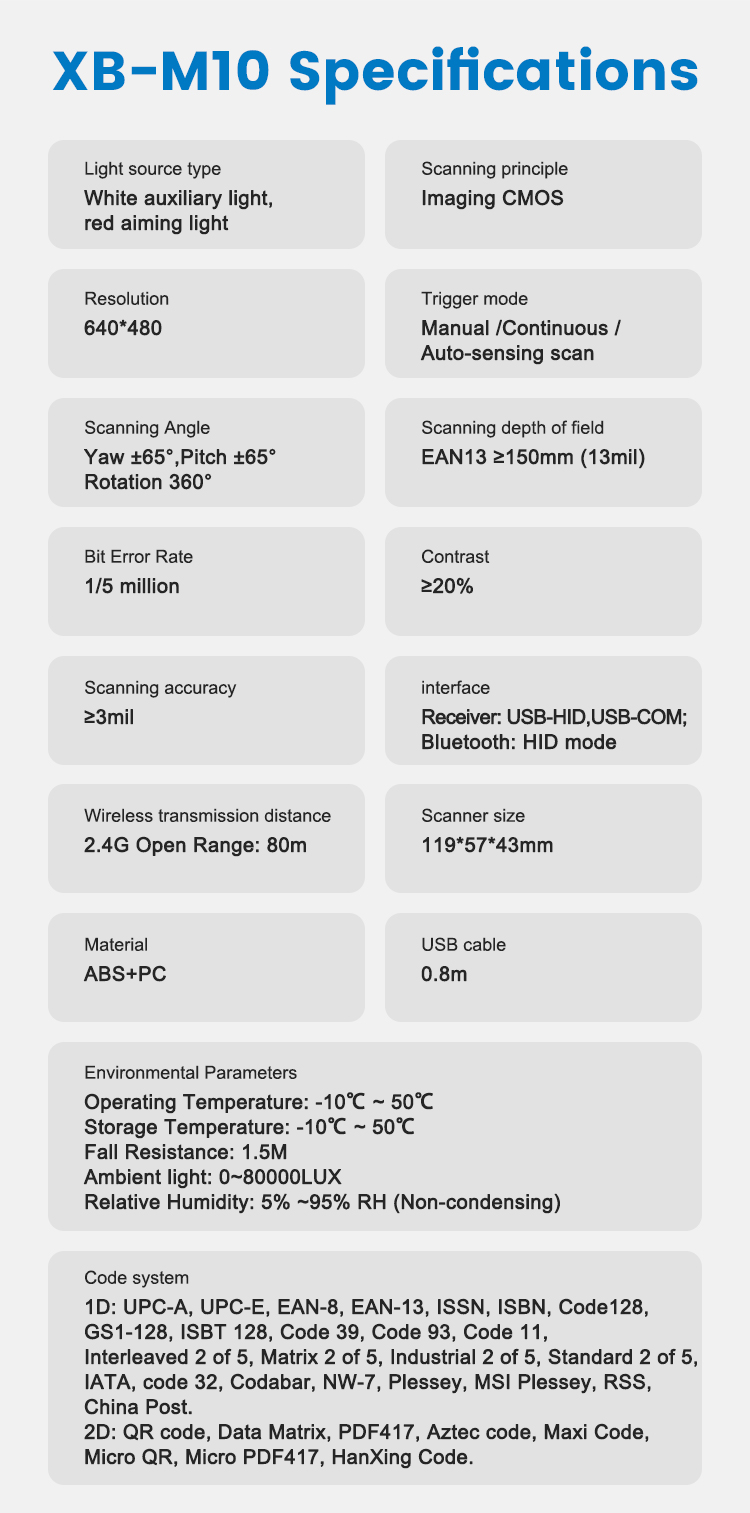

| Performance Parameters | |
| Light Sources | White auxiliary light,red aiming light |
| Supported Symbologies | 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code128,GS1-128, ISBT 128, Code 39, Code 93, Code 11,Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5,IATA, code 32, Codabar, NW-7, Plessey, MSI Plessey, RSS,China Post. |
| 2D: QR code, Data Matrix, PDF417, Aztec code, Maxi Code, Micro QR, Micro PDF417, HanXing Code. |
|
| Scan Type | Image CMOS |
| Resolution | 640*480 |
| Scan Mode | Manual/Continuous/Automatic Induction Scanning |
| Scan angle | Yaw±65°, Rotation 360°, Pitch±65° |
| Contrast | ≥20% |
| Field Angle | 42º（H）x28º（V） |
| Precision | ≥3mil |
| Depth of scan field | EAN-13(13mil): 150mm |
| Error Rate | Less than 1/5million |
| Interface | Receiver: USB-HID |
| BT: HID, | |
| Wireless Communication | Pairing Mobile Wireless Devices: 2.4G & Dual mode BT |
| Wireless transmission distance | 80meters (open distance) |
| Storage Mode | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. |
| Pairing Mode | One to One: One scanner paired with a Wireless mobile device |
| Electrical Parameters | |
| Voltage | DC5V±5% |
| Standby Current | 0mA (Standby is to cut off battery power) |
| Lithium battery | 1500mA |
| Battery Working Time | 12h |
| Charging Time | 4-5h |
| Charging Model | Type-C charging cable, plug straight charge |
| Physical Parameters | |
| Material | ABS+PC |
| Cable | 80CM |
| Environmental Parameters | |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -10℃~+50℃ |
| Drop/Shock Resistance | Withstands multiple times 1.2 meters drops to concrete |

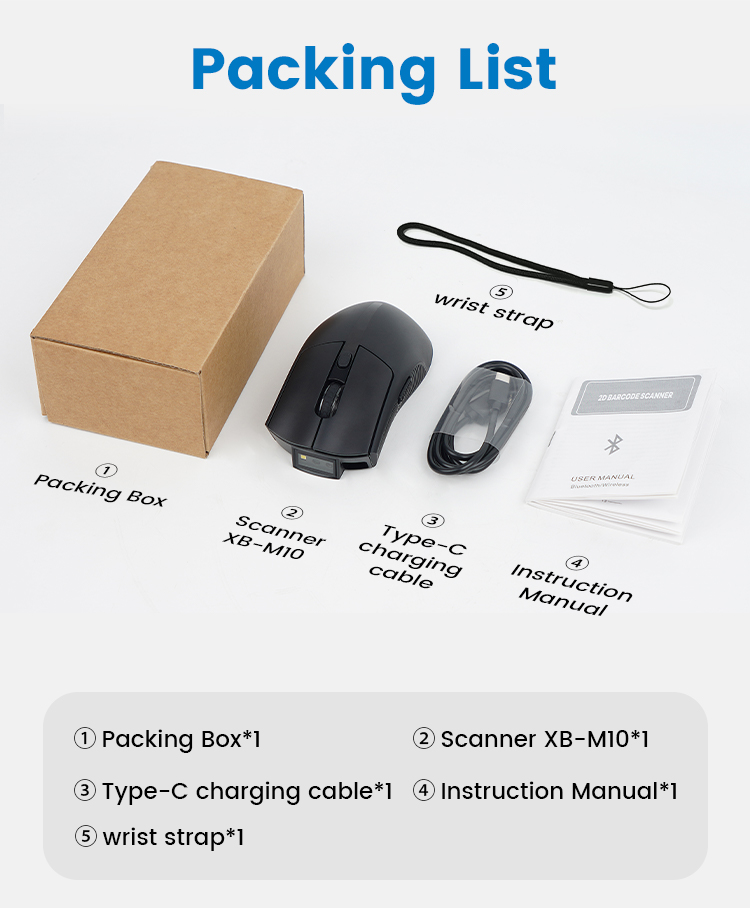

Packaging Details：Package Contents
1* barcode scanner
1* User Manual (English version)
1* Cable (0.8m)
Syble barcode scanner standard package
Technical support:
1. Provide the necessary professional traning online or offline
2. Comprehensive technical support provide pre-sales&after-sales
3. Presentation&promotion of the new inonvative products
Spare parts policy:
1. Provide certain spare parts in every order shipment as required
2. Provide free maintenance or replacement spare parts within the given warranty period
3. Provide free maintenance technology and spare parts chargeable under out of warranty
Products service:
1. Provide the pre-sales,in-sales and after-sales services
2. Provide all technical documents as required
3. 2 years warranty for all of our products
Value-added services:
1. Provide long time maintenance services
2. Provide extended warranty as required
3. Provide the regular routine maintenance services
FAQ
1:Do your company is a trading agent or manufacturer?
We are professional manufacturer of all kinds of Barcode Scanner with own factory
2.What about the warranty of this Corded Barcode Scanner?
2 years warranty on the Barcode Reader, 6 month on the cable
3.What is the minimum order of this Barcode Reader?
The MOQ is 1pc with our logo
4.Do you have stock products to sell?
Yes,and we also work on OEM/ODM orders,like printing with your brand&label design
5.What's your products range?
--Laser barcode scanner
--Wireless barcode scanner
--Omni-directional barcode scanner
--CCD barcode scanner
--2D barcode scanner
